Loop1 (MIDI single-loop switcher)
See also: Building a DIY single-loop MIDI switcher
Overview
The "Loop1" is a compact true-bypass loop switching pedal controllable via MIDI. It can be made by boxing an Oscillator Devices Imp-3PDT into a 1590A.

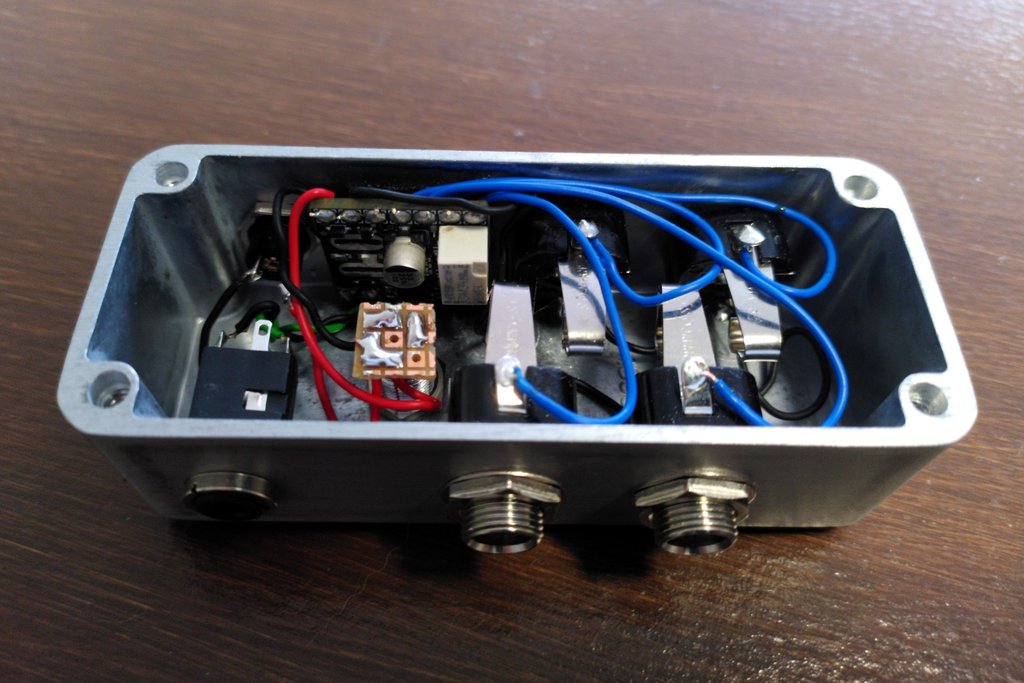

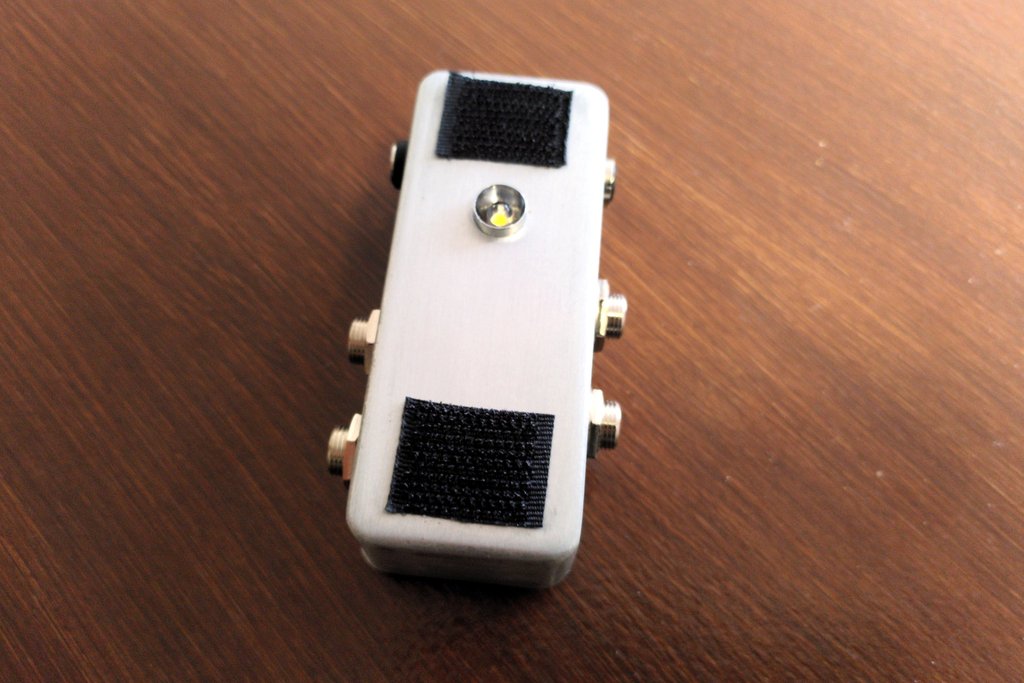

Build example
Wiring schematic
Downloads
- Schematic (KiCAD)
- Inkscape drawing (includes a drilling template)
License
Drawings and schematics released under CC BY-SA 4.0.
